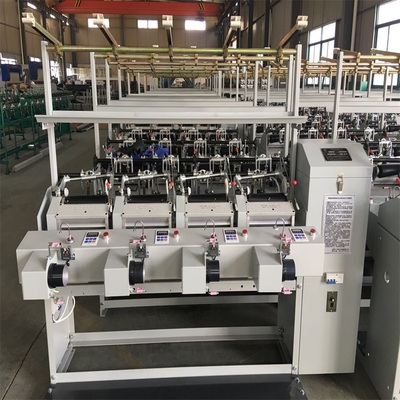

INTRODUCTION
The model is especially suitable for chemical fiber,yarn,rope skein,such as state complex cylinder pipe state.As the machines with computer control system;individual spindle control;oil automatically come on;edge device;anti-stack;auto-stop of break yarn;Fixed-length control;Super feed wire;Slow-starting with adjustable;yarn speed is adjustable;yarn tension-controlled device and other advanced technologies,to ensure the high quality of the machine.Its characteristics:Across the line high speed;A one-off form;uniform tension;forming beautiful.The machine structure is compact,the two sides action is taken,across the line high speed;covers less area.
TECHNICAL PARAMETERS
| Spindle | 8spindles/group(according to customers')base spindle 24 |
| Friction sticks | Flat tubeΦ80x220 |
| ConeΦ80x220 Taper3.5° |
| Tube type | Flat tube or cone(According to customer requirements) |
| Max.yarn diameter | ≤220mm |
| Voltage | 380V 50HZ 3phase5 wires,spindle power120W |
| Size(LxWxH) | L1454×W1262×H1700mm/group |
| Weight | 380kgs/group
|
